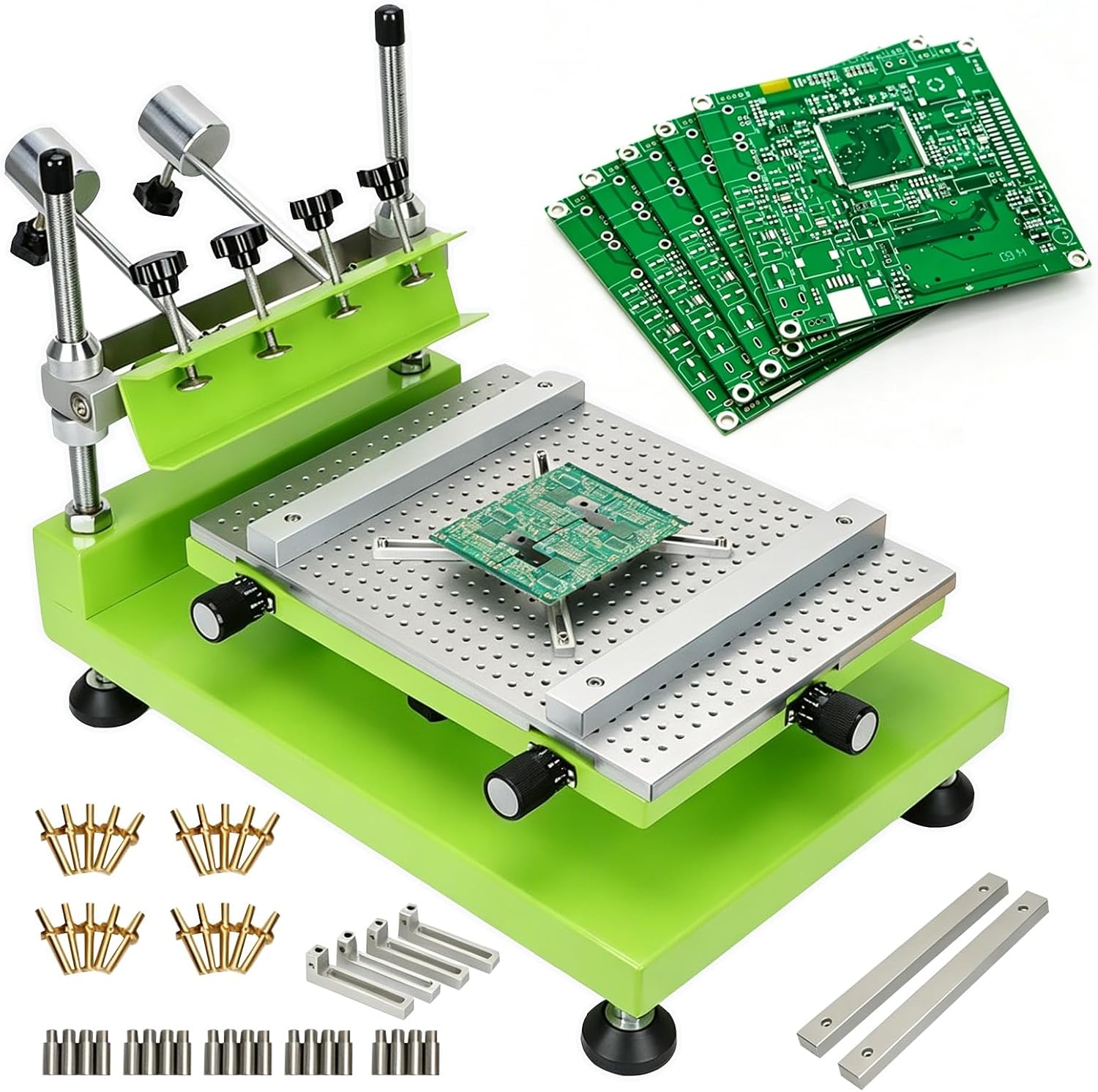

3040 Solder Paste Printer, High-Precision Screen Printing Machine with Electroplating and Baking Paint Processes, Flexible Positioning for SMT Assembly, PCB Fabrication

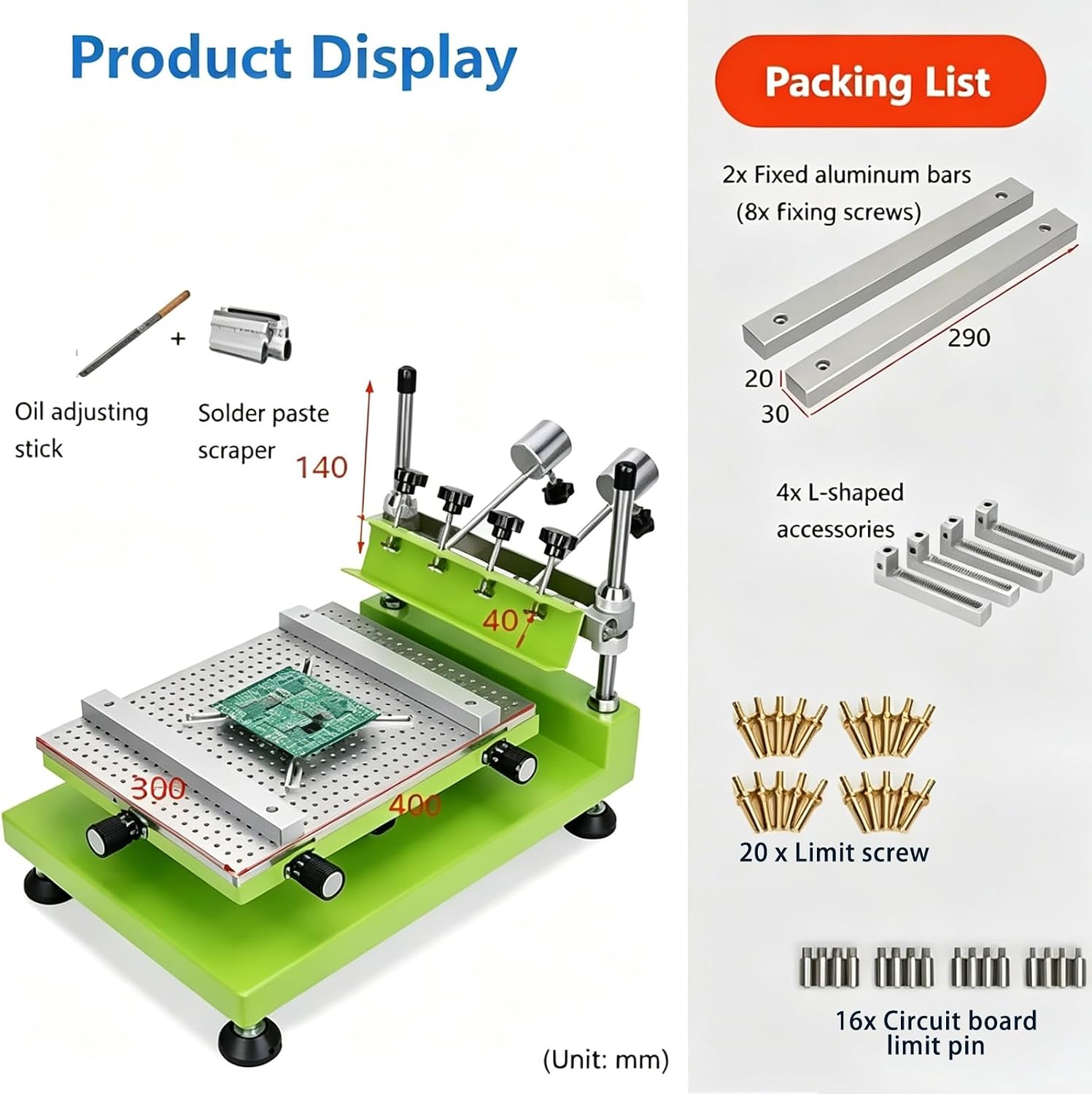

Product Description✅Why choose this screen printing table?⭐Precise Adjustment：Built-in fine-tuning knobs for accurate X/Y axis calibration, enabling easy positioning and ensuring stable printing repeatability.⭐ Sturdy, Durable Base: Constructed with thickened steel plate base for excellent stability, high rigidity and long service life.✅【PRODUCT PARAMETERS】►Name : High-Precision Screen Printing Machine► Size: 61*45*22cm（24.02” × 17.72” × 8.66”）►Weight: 23kg （ 50.71 lbs）►Material: aluminium.►Max. Print size: 300 x 400 mm.►Max. Screen frame size: 370 x 470 mm.►Printing speed: manual control.►Repeatability: ± 0.01 mm.►Maximum Screen Frame Thickness: 40 mm►Maximum Screen Clamp Lifting Height: 140 mm►Aluminum Plate Hole Spacing: 25 mm►Aluminum Plate Thickness: 8 mm►Aluminum Plate Hole Diameter: 5.5 mm📦【PACKING LIST】1 * 3040 Solder Paste PrinterA set of accessories.⚠️【NOTES】① Due to lighting and manual measurement, there may be color differences and a 1-3cm error② When the printing template moves up and down, do not use too much force to avoid damaging the machine and affect the positioning accuracy.③ Pay attention to protecting the positioning pins when taking and placing the circuit board to avoid damage. To place holes of different sizes, you can also equip the corresponding positioning pins.💌 If you have any inquiries about the product, please contact us via email, we will respond promptly.

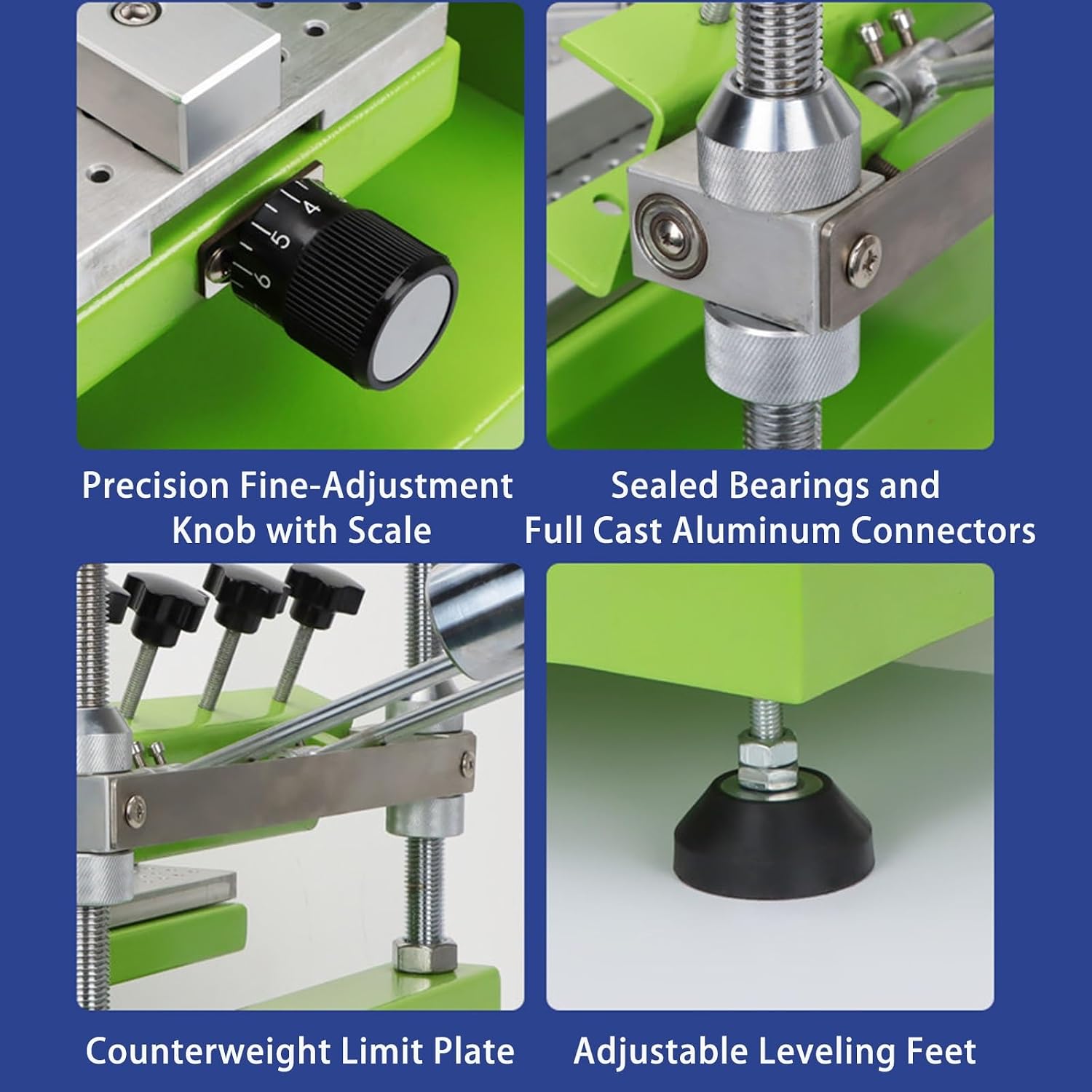

• ⚙️【Premium Material & Durable】 : Honeycomb aluminum workbench, welded thickened steel base, baked-on paint, electroplated counterweights & cast-aluminum connectors for sturdiness, long service life.
• ⚙️【High Precision Printing】 : ±0.01mm repeat positioning accuracy, with positioning pins & thimbles to guarantee stable PCB placement and consistent repeated operation results.

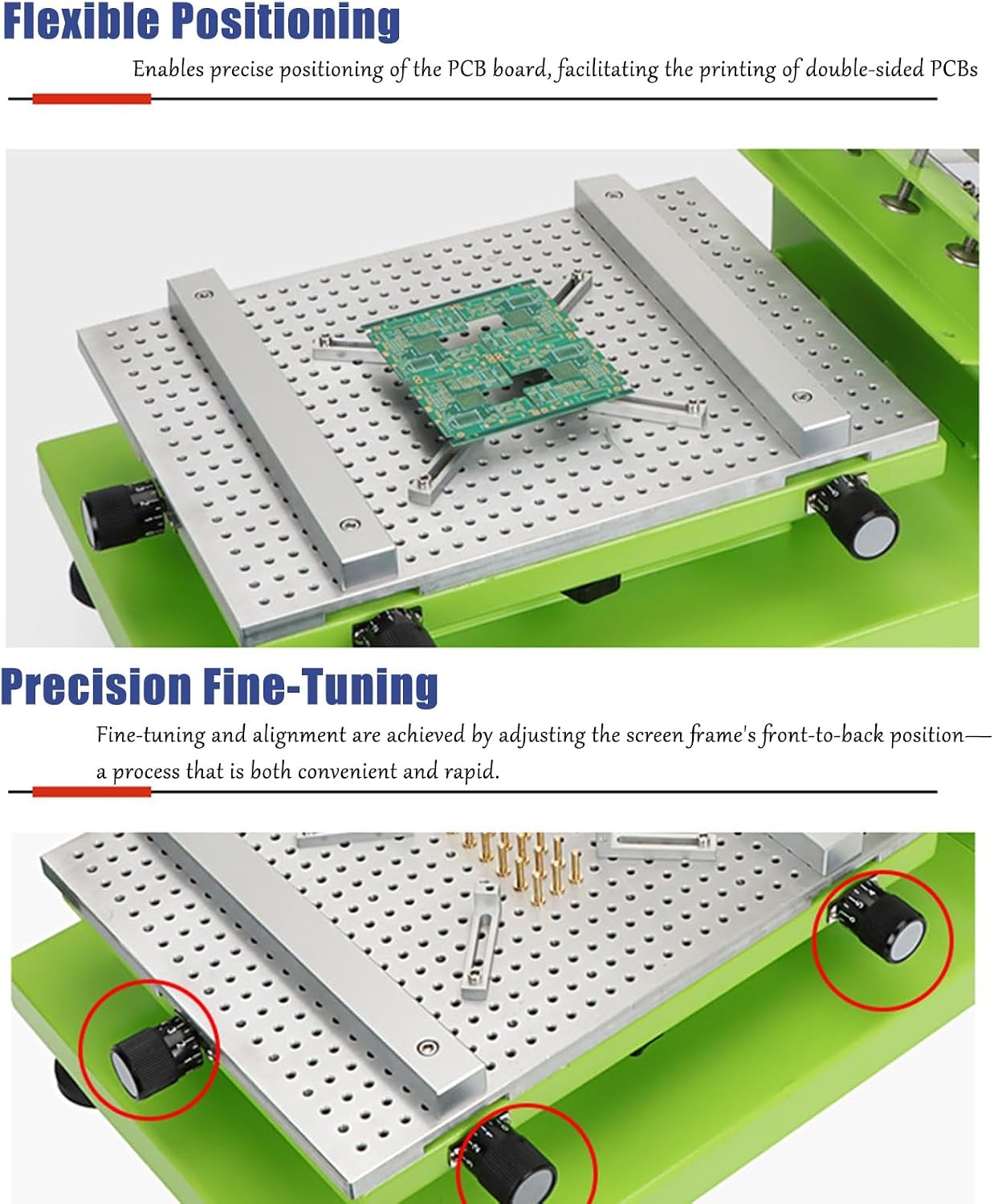

• ⚙️【Flexible Stable Positioning】 : Universal honeycomb plate with movable thimbles and support plates for flexible PCB placement; knob press plate locking ensures firm fixation without shifting.
• ⚙️【Easy Adjustment & Calibration】 : X/Y axis fine-tuning for fast alignment; spiral screw rod enables stepless height adjustment to control PCB thickness and solder paste volume easily.
• ⚙️【Wide Application】 : Suitable for SMT assembly, PCB, LED, consumer and automotive electronics; easy to clean with sealed bearings and upgraded parts for smooth daily use.
